Jigsaw Puzzle Die Cutting Machine
VR
  • Product Details

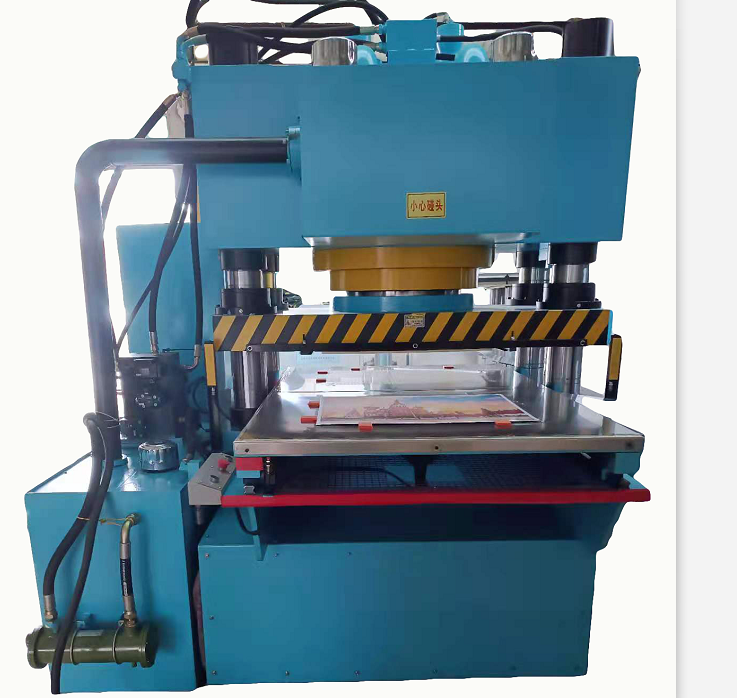

600 ton puzzle die cutting machine has a pressure of 600 tons and adopts a four-column structure to ensure stable support and precise positioning during the cutting process. This type of machine is usually equipped with a precision die-cutting head that can cut raw materials (such as cardboard or wood) into various shapes of puzzle pieces. It may also be equipped with a PLC control system and automatic feeding system to realize automated operations and improve production efficiency.


600 Tons Jigsaw Die Cutting Machine



  •
    600 Tons Pressure
  •
    Precision cutting technology
  •
    With Automatic Moving Table
  •
    Long Lasting



Applicable Industries:Puzzle makingShowroom Location:None
Condition:NewProduct Type:Manual Puzzle Machine
Processing Type:Cutting MachinePlace of Origin:Guangdong, China
Brand Name:JHSVoltage:AC220V
Power:22kw, AC220VDimension(L*W*H):L3000mm*W5000mm*H2600mm
Weight:15000 kg, 15000kgWarranty:1 Year
Production Capacity:7/10 pcs/minMachinery Test Report:Provided
Video outgoing-inspection:ProvidedMarketing Type:Other
Warranty of core components:1 YearCore Components:PLC
Feature:High EfficiencyName:Automatic jigsaw puzzle die cutting machine
Color:YellowProduct name:Moving table jigsaw cutting machine
Application:ProducingProduct Keywords:Jigsaw game mobile die cutting machine
Usage:Touch screen controlFunction:High Efficiency

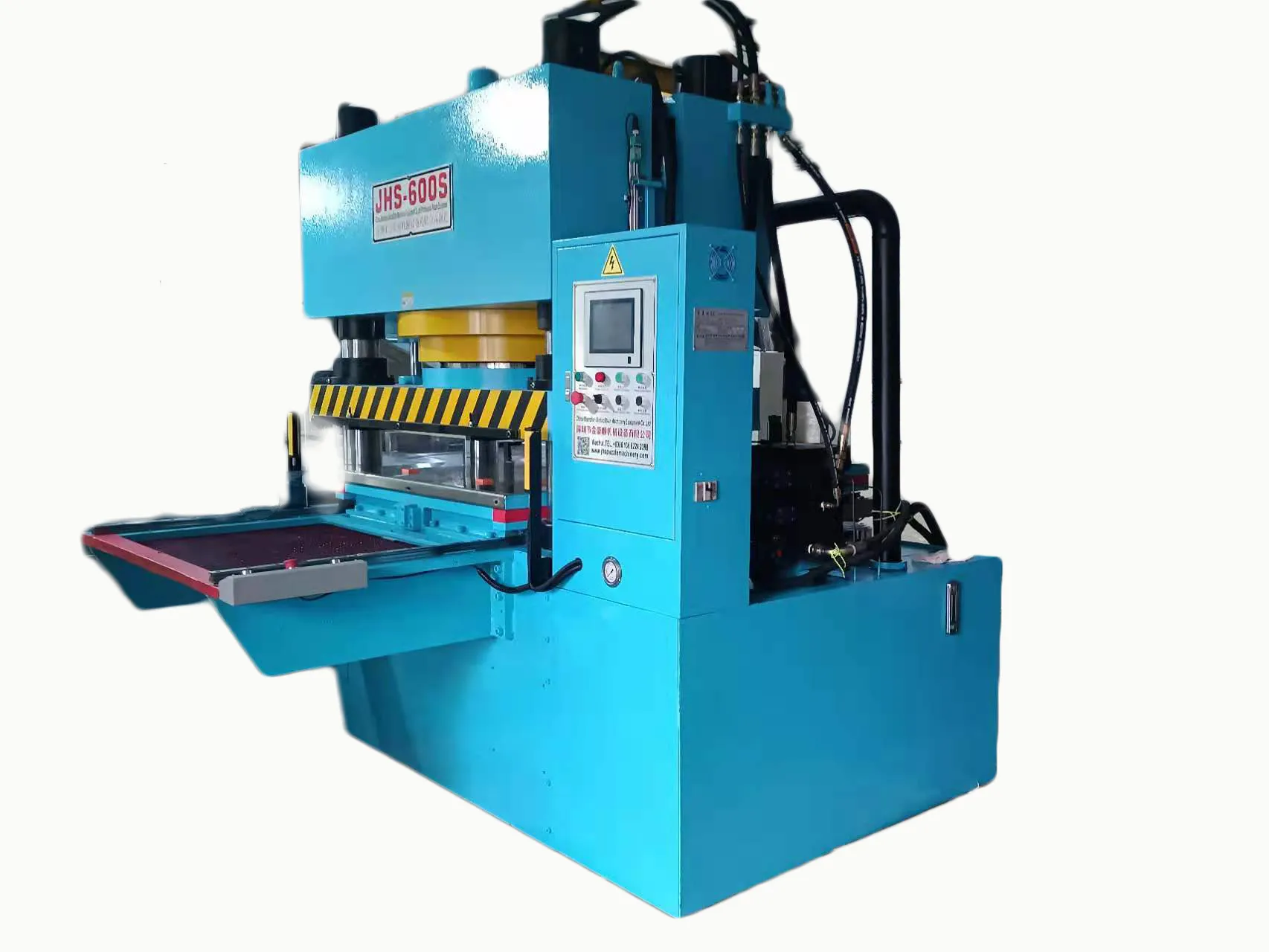

4 column Jigsaw Puzzle Die Cutting Machine with moving table


√ fast speed production, and the puzzle cutting can be completed in 4 seconds.

√ Energy saving and noise reduction 50%

√ Equipped with the most advanced computer control system

√ 50 to 3000 tons pressure

√ The entire stroke speed is adjustable

√ Equipped with multiple safety components to ensure worker safety

√ Optional visual inspection to detect missing pieces of the puzzle

√ User-friendly and easy-to-learn control system

√ Repeatable positioning accuracy up to ±0.01mm

√ Pressure error ±1bar

√ low maintenance

√ High-quality components from top international brands




Automatic dual mobile station operation

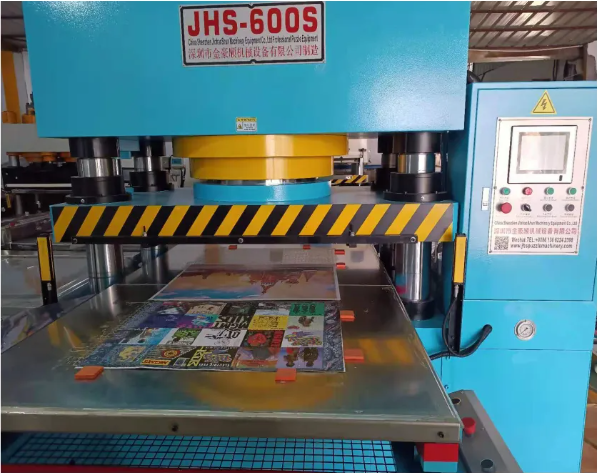

The moving table is where the material to be cut is placed. The puzzle die cutter machine feature allows the table to move precisely and consistently, ensuring accurate cutting of the material. It can move in multiple directions, allowing for efficient positioning of the material under the die.

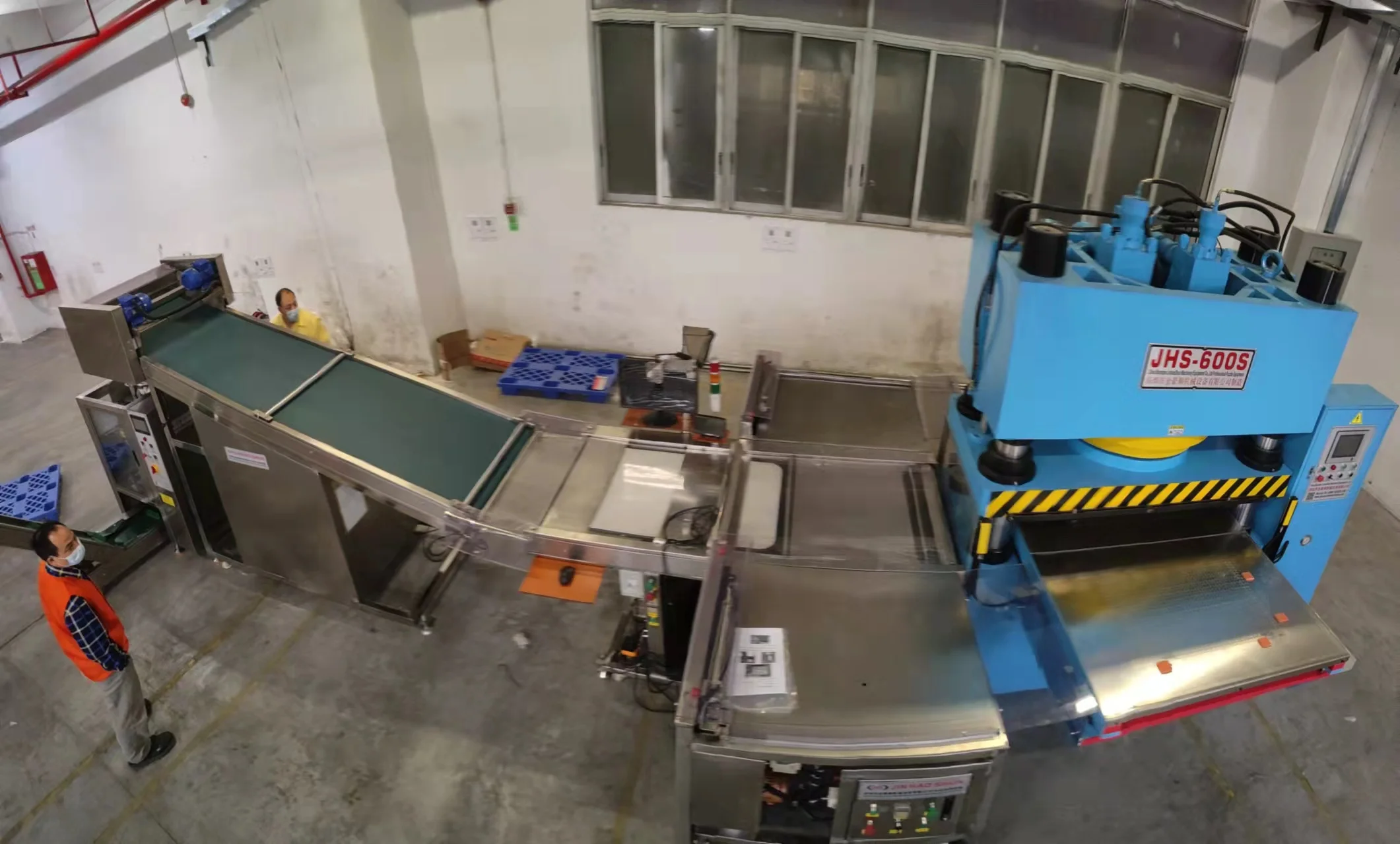

● It can be easily integrated into automated production lines, improving the automation of the entire process.

● The sliding table is equipped with a two-hand start button and an emergency stop button.

● The sliding worktable is specially designed for puzzle cutting machines to reduce puzzle displacement caused by sliding inertia.






4 column Hydraulic system

puzzle die cutter machine adopt Leak-proof and oil-proof design, ensuring stable and safe operation for decades.

● Equipped with overload overflow protection device.


● The cylinder's piston rod is heat-treated and chromium-plated, allowing it to operate reliably under high pressures.


● Liquid level thermometer on the front side of the fuel tank, used to observe liquid level and temperature.


● Hydraulic oil pipes have excellent durability and sealing properties.


● The hydraulic system adopts oil-water cooling method.
