Automatic Jigsaw Puzzle Die Cutter
  • Automatic Jigsaw Puzzle Die Cutter

Automatic Jigsaw Puzzle Die Cutter

Imagine a magical machine that can turn any image into a beautiful jigsaw puzzle with just the press of a button. As you watch in awe, the pieces effortlessly come together, revealing a stunning picture that you can't wait to put together. With the Automatic Jigsaw Puzzle Die Cutter, the joy of puzzling is taken to a whole new level of ease and excitement.
Products Details

Product features

Our Automatic Jigsaw Puzzle Die Cutter is a cutting-edge machine equipped with high-precision components, providing a wide range of processing capabilities. With a stable and reliable quality, this cutting machine ensures long-lasting, multi-functional performance, revolutionizing the puzzle making process. The hydraulic system, featuring a compact design and resistance to oil contamination, guarantees efficiency and durability, while options for shuttle or exchange worktables enhance safety and productivity in puzzle cutting operations.

Company profile

Our company, a leader in innovative cutting technology, is proud to introduce the Automatic Jigsaw Puzzle Die Cutter. With a strong commitment to quality and efficiency, we strive to provide cutting-edge solutions for the puzzle industry. Our state-of-the-art die cutter is designed to streamline the puzzle production process, saving time and labor costs. The precision cutting technology ensures perfect puzzle pieces every time, resulting in high-quality finished products. As a customer-focused company, we are dedicated to meeting the needs of our clients and delivering top-notch products that exceed expectations. Choose our Automatic Jigsaw Puzzle Die Cutter for unrivaled performance and reliability.

Enterprise core strength

Our company is a leading manufacturer of innovative cutting solutions, specializing in the design and production of high-quality die cutters. Our automatic jigsaw puzzle die cutter is a game-changer in the industry, offering precision cutting and efficiency like never before. With a commitment to excellence and customer satisfaction, we strive to deliver cutting-edge technology that meets the diverse needs of our clients. Our team of experts is dedicated to providing top-notch service and support, ensuring a seamless experience from purchase to operation. Trust in our company to elevate your cutting capabilities and take your business to the next level.

Our Digital servo high precision automatic cutting jigsaw puzzle press machine production linehas a look that is unique enough to grab the attention of most of the customers. This jigsaw cutting machine usually consists of a hydraulic system, a die, a worktable and a control system.


Industrial Jigsaw Cutting Machine


Our jigsaw puzzle press machines are equipped with the highest-grade components in the industry while offering an excellent price/performance ratio. Get a great deal when you buy the complete set of equipment. Don't miss your chance to revolutionize your puzzle making process, reduce production costs and maximize profits!

  •
    Wide range of processing
  •
    Stable and reliable quality
  •
    Long lasting & Multi function
  •
    With exchange or shuttle worktable



Applicable Industries:Puzzle makingConfigurationPLC touch screen control
Lubrication methodservo motorProduct Type:Automatic Puzzle Machine
Processing Type:Cutting MachinePlace of Origin:Guangdong, China
Brand Name:JHSVoltage:AC220V

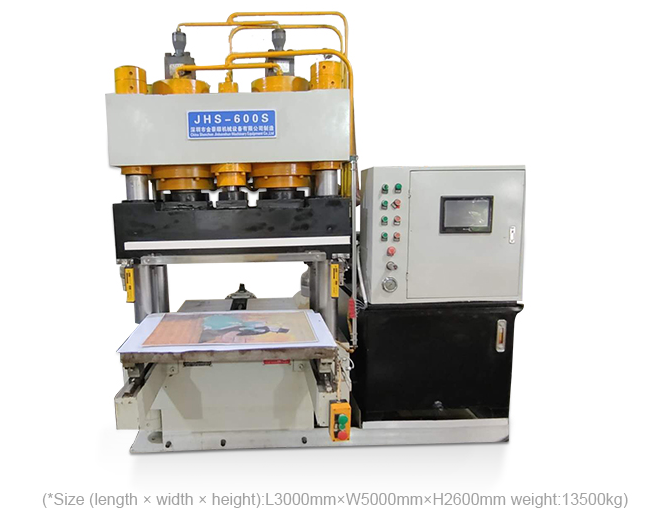

Dimension(L*W*H):L3000mm*W5000mm*H2600mmWeight:13500 kg, 13500kg
Warranty:1 YearProduction Capacity:7/10 pcs/min
Machinery Test Report:ProvidedVideo outgoing-inspection:Provided
Marketing Type:OtherWarranty of core components:1 Year
Core Components:PLCFeature:High Efficiency
Power:AC220VName:Automatic mechanical hand puzzle die cutting machine
MuteWeak soundProduct name:Toys Puzzle Die Cutting Machine
Application:ProducingProduct Keywords:Automatic Core Cutter
Usage:Making Paper Plate Dish TrayFunction:High Efficiency


Jigsaw cutting machine structure

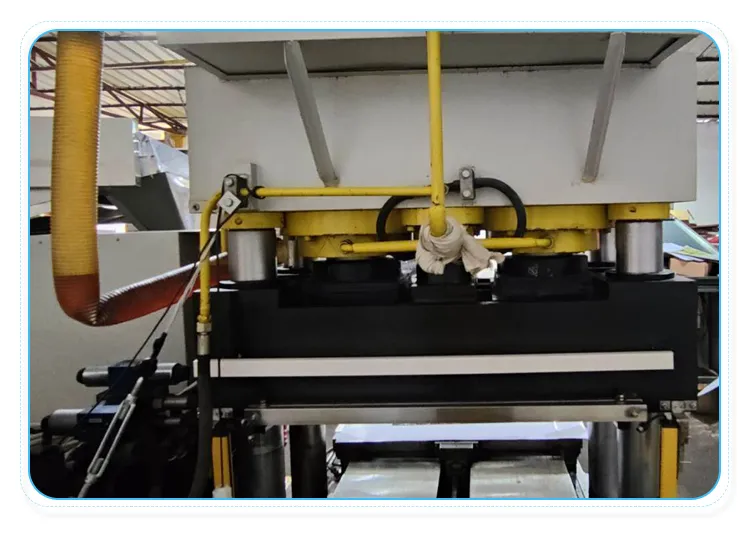

The jigsaw cutting machine uses a four-column hydraulic press, which consists of top cover welding parts, slider welding parts, workbench and bed welding parts. Adopting a compact design, the hydraulic system is installed at the bottom, reducing the floor space and optimizing space utilization.


● The frame of this hydraulic puzzle press machine is made of high-quality low-carbon heavy-duty steel to ensure smooth operation and long-term durability.


● In order to ensure the structural integrity of the machine, the fuselage is manufactured using one-piece heavy-duty welding technology, and each weld undergoes strict ultrasonic testing.


● The main hydraulic cylinder and four columns are made of high-strength alloy steel, which is finely ground and electroplated with hard chrome to resist corrosion and wear, ensuring durability and service life even under high-pressure conditions.



Shuttle worktable | exchange worktable


JHS puzzle cutting machine can be equipped with shuttle workbench or exchange workbench to ensure safer and more efficient puzzle cutting.


● High-precision, high-speed linear guide rails and ball screws are all products from Taiwan HIWIN.

● The sliding table is driven by a servo motor.

● It has jog, single cycle and automatic operation modes.

● It can be easily integrated into automated production lines, improving the automation of the entire process.

● The sliding table is equipped with a two-hand start button and an emergency stop button.

● The sliding worktable is specially designed for jigsaw cutter machine to reduce puzzle displacement caused by sliding inertia.

Hydraulic system
The hydraulic system of the jigsaw cutting machine is mainly composed of an oil pump motor device, a master cylinder integrated valve, a pressure gauge, a pressure sensor and a fuel tank.


● A closed-loop control system ensures continuous monitoring and elimination of defects throughout the puzzle pressing process, significantly reducing scrap rates.

● The jigsaw puzzle press machine is designed to be highly resistant to oil contamination.

● The connecting pipes are shorter and there are fewer release points, greatly reducing the risk of oil leakage.
